KY3485LEEN-GA3R

产品概述

The KY3485 3.3/5V, half-duplex, ±16kV ESD-protected RS-485/RS-422 compatible transceivers feature one driver and one receiver.

The KY3485 features enhanced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free transmission up to 10Mbps.

KY3485LEEN-GA3R数据手册

特性

应用

器件信息

简化通道结构图

 3.3/5V Operation

 Hot-Swappable for Telecom Applications

 Enhanced Slew-Rate Limiting Facilitates Error-Free Data Transmission

 Extended ESD Protection for RS-485 I/O Pins ±8kV HBM, ±16kV Air-GapDischarge Model.

 1/8Unit Load，Allowing Up to 256 Transceivers on the Bus.

 8 Pin-SO Package

 Isolated RS-485 Interfaces

 Utility Meters

 Industrial Controls

 Industrial Motor Drives

 Automated HVAC Systems

产品型号	封装	标准包装
KY3485LEEN-GA3R	SOP-8	Reel,2500

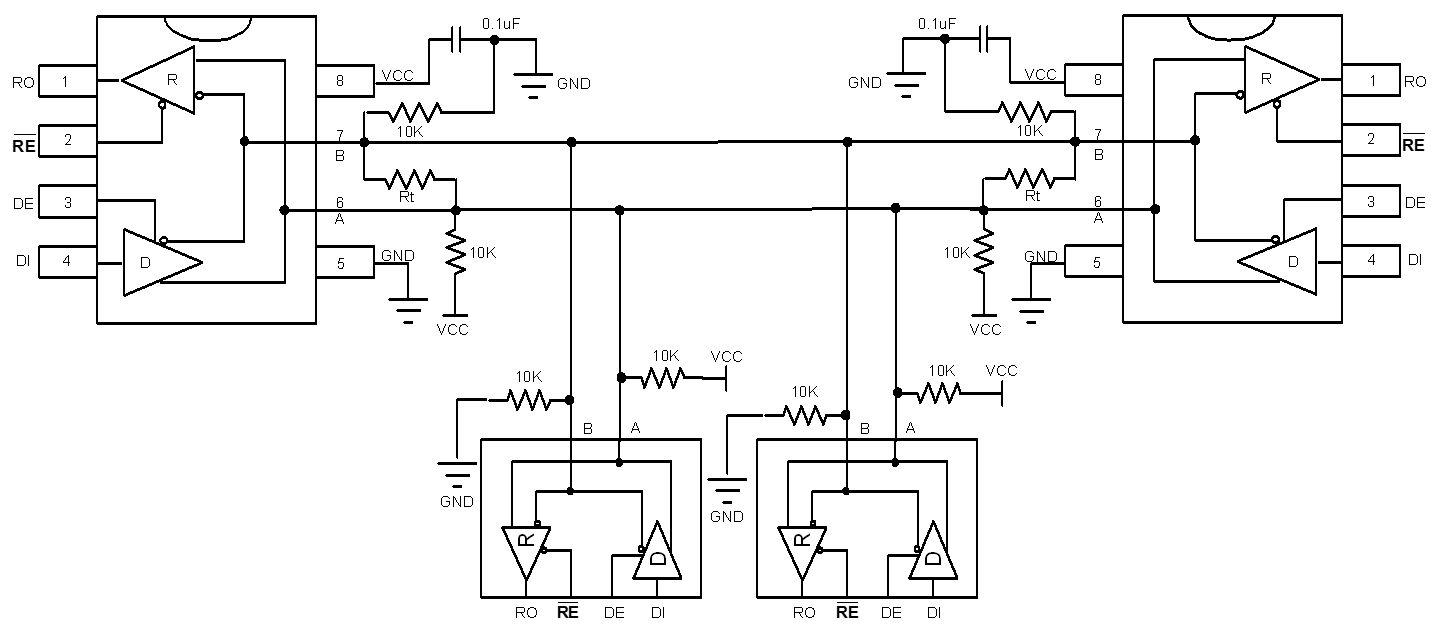

Typical Half-Duplex RS-485 Network
